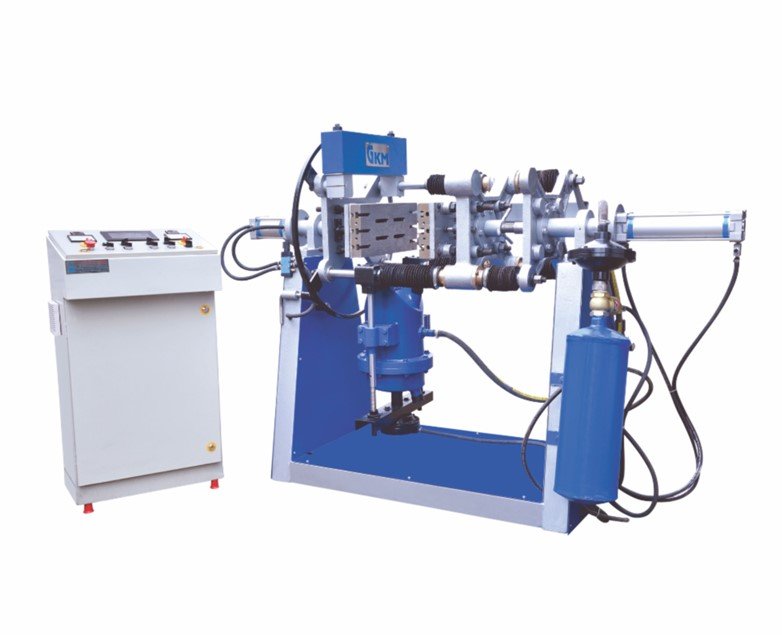

Special Features of Automatic Machine :

• Consistent High Production.
• Minimum Tool Failure.
• Emergency Alarm on Breakdown.
• Effective in cost reduction.

Technical Detail:

• Dual Spindle Automatic Machine:
• 3H.P. Electric Motors (2 Nos.) – 8 pole & 6 pole (ABB/Siemens)
• Pneumatic Cylinder- 80mm 100mm (attachment) – pressure up to 6 kgs/cm^2 (Genetic lIp, Coimbatore)
• Hard-chrome spindle (2 Nos.) – Double bearing used in each spindle for play restriction in spindle
  (Taper bearing NSK Japan).
• Collet size ER 40
• Lubricating Pump
• Total Height of Machine is above 6 feet.
•  Accuracy = 10 um to 20 m
• 25 Grade Casting
• Paint used-2 K quality.
• Drilling speed:
  With 1440 rpm Motor
  Spindle Speed 1400-1000pm
  With 2800 rpm motor Spindle speed 2500-2000pm
• Tapping Speed:
  With 720rpm motor
  Spindle Speed 720-420pm

Main Components:

• Insures Human Safety.
• Increases Panel and Machinery Life.
• Collects turning and avoids wastage of it.
• Casted iron (25 grade) 6 piece: base, Column, Spindle box, Lift platform, Panel, Worktable.
• All the spindle bearings come from NSK Japan.
• Electrical system: Power contactor, Mcb 32A, electrical board bakelite sheet, Safety fuse with base with indicators, Relays with base, Overload relay, 3 phase indicators, Instrumental fan with filter, SMPS 24 volt dc.
• Pneumatic system: Solenoid valve, Air filter regulator, Pneumatic cylinder, Pressure controller.
  Lubrication system: Manual oil injector.
• Arbor (Tool holder).
• The spindle motor from Crompton/ ABB/Siemens.
• Pneumatic vice with dovetail jaw.
• PLC Box & HMI-Touch Screen Control Panel
  (Delta Co.)
• Electrical parts used in Control Panel Board
  (Schneider/Siemens)

Special Features :

• Consistent High Production.
• Minimum Tool Failure.
• Emergency Alarm on Breakdown.
• Effective in cost reduction.

Technical Detail:

Dual Spindle Manual Machine:

• 3H.P. Electric Motors (2 Nos.) – 8 pole & 6 pole (ABB/Siemens)


• Pneumatic Cylinder- 80mmX 100mm (attachment) – pressure up to 6 kgs/cm2 (Genetic lIp, Combatore)


• Hard-chrome spindle (2 Nos.) – Double bearing used in each spindle for play restriction in spindle (Taper bearing NSK Japan).


• Collet size ER 40


• Lubricating Pump


• Total Height of Machine is above 6 feet.


• Accuracy = 10 pm to 20 um


•  25 Grade Casting


• Paint used-2 K quality.


• Drilling speed:
  With 1440 rpm Motor Spindle Speed 1400-1000pm With 2800 rpm motor Spindle speed 2500-2000 rpm


• Tapping Speed:
  With 720rpm motor
  Spindle Speed 720-420pm

Main Components:

• Casted iron (25 grade) 6 piece: base, Column, Spindle box, Lift platform, Panel, Worktable.


• All the spindle bearings come from NSK Japan.


• Electrical system: Power contactor, Mcb 32A, electrical board bakelite sheet, Safety fuse with base with indicators, Relays with base, Overload relay, 3 phase indicators, Instrumental fan with filter, SMPS 24 volt dc.


• Pneumatic system: Solenoid valve, Air filter regulator, Pneumatic cylinder, Pressure controller.


• Lubrication system: Manual oil injector.


• Arbor (Tool holder).


• The spindle motor from Crompton/ ABB/Siemens.


• Pneumatic vice with dovetail jaw.


• PLC Box & HMI-Touch Screen Control Panel.
  (Delta Co.)


• Electrical parts used in Control Panel Board
  (Schneider/Siemens)

Technical Detail:

Dual Spindle Automatic Machine:

• 3Н.P. Electric Motors (2 Nos.) – 8 pole & 6 pole (ABB/Siemens)
• Pneumatic Cylinder- 80mm 100mm (attachment) – pressure up to 6 kgs/cm2 (Genetic Up, Combatore)
• Hard-chrome spindle (2 Nos.) – Double bearing used in each spindle for play restriction in spindle (Taper bearing NSK Japan).
• Collet size ER 40
• Lubricating Pump
• Total Height of Machine is above 6 feet.
• Accuracy = 10 um to 20 um
• 25 Grade Casting
• Paint used-2 K quality.
• Drilling speed:
  With 1440 rpm Motor Spindle Speed 1400-1000pm
  With 2800 rpm motor
  Spindle speed 2500-2000pm
• Tapping Speed:
  With 720pm motor
  Spindle Speed 720-420pm

Special Features of Automatic Machine:

• Consistent High Production .


• Minimum Tool Failure.


• Emergency Alarm on Breakdown ( Poka Yoke).


• Effective In Cost Reduction.

Main Components:

• Casted iron (25 grade) 6 piece: base, Column, Spindle box, Lift platform, Panel, Worktable.
• 2 All the spindle bearings come from NSK Japan.
• Electrical system: Power contactor, Mcb 32A, electrical board bakelite sheet, Safety fuse with base with indicators, Relays with base, Overload relay, 3 phase indicators, Instrumental fan with filter, SMPS 24 volt dc.
• 4 Pneumatic system: Solenoid valve, Air filter regulator, Pneumatic cylinder, Pressure controller
  Lubrication system: Manual oil injector.
• 5 Arbor (Tool holder).
• 6 The spindle motor from Crompton/ ABB/Siemser
• 7 Pneumatic vise with dovetail jaw.
• 8 PLC Box & HMI-Touch Screen Control Panel.
  (Delta Co.)
• 9 Electrical parts used in Control Panel Board
• 10 (Schneider/Siemens)

Technical Detail:

Three Spindle Automatic Machine:

• 3Н.P. Electric Motors (2 Nos.) – 8 pole & 6 pole (ABB/HSBC) and 1HP Electric motor (1no).


• 3 Servo Motors (2 servo motors for XY axis movement and 1 servo motor for Z axis movement (Drilling feed).


• Working Table of Machine- The movement of slide in
  The X-Y axis is 310 ×190.


• Pneumatic cylinder-80mmX100mm (attachment) – pressure up to 6 kgs/cm^2.


• Hard Chrome spindle (3nos)-Double bearing used in each spindle for play restriction in spindle (Taper bearing NSK Japan).


• Colet size ER 40.


• Lubrication Pump.


• Total Height of Machine is above than 6 feet 5 inch.


• Accuracy =10 um to 20 um.


• Drilling speed:
  With 1440 rpm Motor
  With 2800 rpm Motor
  Spindle Speed 1400-1000pm
  Spindle speed 2500-2000pm


• Tapping Speed
  With 720 rpm Motor
  Spindle Speed 720-420 rpm

.

Special Features of Automatic Machine:

• Consistent High Production .


• Minimum Tool Failure.


• Effective In Cost Reduction.

Main Components:

• Casted iron (25 grade) 6 piece: base, Column, Spindle box, Lift platform, Panel, Worktable.


• Electrical System: Power contractor, Mcb 32A, electrical board, safety fuse with base with indicators, relay with base, overload relay, 3 phase indicators, instrumental fan with filter, SMPS 24 volt de.


• Pneumatic system: Solenoid valve, Air filter regulator, Pneumatic cylinder, Pressure controller.
  Lubrication system: Manual oil injector.


• Arbor (Tool holder).


• Pneumatic vise with dovetail jaw.


• PLC Box & HMI- Touch Screen Control Panel.
